I. Product Overview:

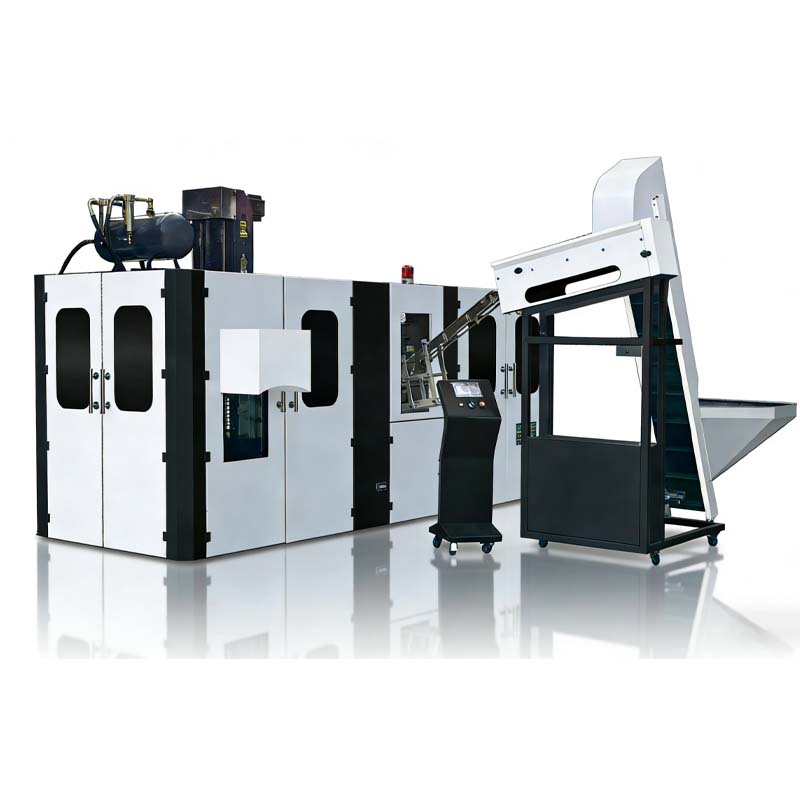

The YC-SF-10L and YC-SF-20L are heavy-duty, fully-electric stretch blow molding machines specifically designed for producing large-capacity PET containers, such as 3-gallon and 5-gallon bottled water jars. They feature special reinforcements to address the process challenges of heating large preforms and blow molding large volumes, ensuring uniform wall thickness and overall strength even at large sizes. They are core production equipment for the bottled water industry, large liquid food packaging, and industrial liquid packaging.

II. Core Technical Advantages

1. Heavy-Duty Structure & High Clamping Force: Reinforced frame and higher clamping force ensure stability and safety of large molds during high-pressure blowing.
2. High-Power Heating & Temperature Control: Equipped with high-power, multi-zone heating systems to ensure large preforms are heated evenly and quickly to the required temperature.
3. Long-Stroke High-Thrust Stretching: Powerful servo stretching mechanism provides sufficient stroke and thrust to ensure adequate axial stretching for large-capacity bottles.
4. High-Pressure High-Flow Blowing: Optimized large-flow air path system delivers stable and ample high-pressure air, ensuring rapid forming of the large surface area bottle body.

III. Process Flow

1. Large preforms enter the heavy-duty heating oven via a dedicated loading mechanism.
2. Preforms are heated for an extended period in multiple zones within the oven to ensure uniform temperature from core to surface.
3. Heavy-duty grippers transfer the high-temperature preform into the large blow mold.
4. The long-stroke stretch rod performs stretching slowly and powerfully, while high-flow, high-pressure air is injected, causing the material to evenly cover the large mold cavity.
5. After sufficient cooling and setting, the mold opens, and the gripper extracts the heavy finished bottle.

IV. Technical Specifications

• Model: YC-SF-10L / YC-SF-20L
• Drive System: All-Servo Electric
• Typical Output: Approx. 80-150 bottles/hour (based on 5-gallon/18.9L bottle)
• Suitable Preform: Large PET water bottle preforms
• Production Capacity: 8L - 12L (10L model) / 15L - 23L (20L model)
• Power Consumption: ~55 kW (10L) / ~70 kW (20L)
• Clamping Force: High-tonnage design
• Machine Dimensions: Approx. 8000L x 3500W x 5000H mm

V. Application Fields & Product Examples

• Primary Application: Bottled water production plants, large juice/beverage concentrate packaging, chemical liquid packaging, food industrial ingredient packaging.
• Product Examples: 3-gallon/11.3L, 5-gallon/18.9L bottled water jars, 20L chemical reagent bottles, 10L food sauce bottles.
