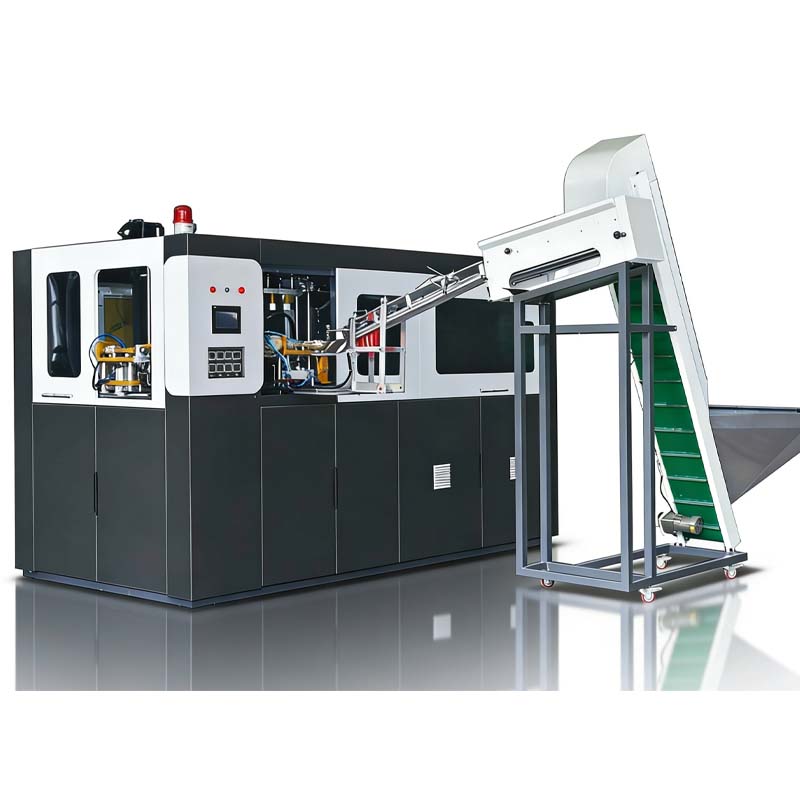

I. Product Overview:

The YC-SF-2000 is a highly flexible, space-saving compact fully-electric PET stretch blow molding machine. With a moderate output of 2000 bottles per hour, it focuses on meeting the needs of small-batch, multi-variety production. This model is particularly suitable for new product R&D and prototyping, specialty beverage brands, high-end cosmetic packaging, and production scenarios requiring frequent bottle shape changes, making it an ideal choice for enterprises pursuing flexibility and innovation.

II. Core Technical Advantages

1. Ultimate Flexibility & Quick Changeover: Designed for fast mold and gripper changes, enabling switching between different bottle productions in minimal downtime.
2. Compact & Energy-Efficient Design: Compact frame saves factory space; all-electric drive ensures low power consumption and economical operation.
3. Precision Molding Control: Despite its smaller size, it is equipped with precise servo control and temperature systems to ensure good molding quality even for complex bottle shapes.
4. Easy Operation: High degree of automation from preform loading to finished product output allows for single-person operation.

III. Process Flow

1. Preforms are fed via a simple elevator or manually into the hopper, then automatically sorted into the heating track.
2. Preforms are precisely heated to the set temperature in a compact heating box.
3. Servo grippers pick the hot preforms and accurately place them into the blow mold.
4. The mold closes, and stretching and high-pressure blowing occur, instantly forming the bottle.
5. After mold opening, the gripper extracts the bottle and places it on the worktable or conveyor.

IV. Technical Specifications

• Model: YC-SF-2000
• Drive System: All-Servo Electric
• Max. Output: Up to 2000 bottles/hour (based on 500ml water bottle)
• Suitable Preform: Standard PET preforms, single cavity
• Max. Bottle Capacity: ≤ 5.0 L
• Power Consumption: ~25 kW
• Air Pressure: 6-7 bar
• Machine Dimensions: Approx. 4500L x 2200W x 3500H mm

V. Application Fields & Product Examples

• Primary Application: Product R&D centers, craft beverage workshops, high-end cosmetic factories, specialty food packaging, sample making.
• Product Examples: 250ml craft beer bottles, 100ml serum bottles, 500ml premium juice bottles, 2L specialty vinegar bottles.
