I. Product Overview:

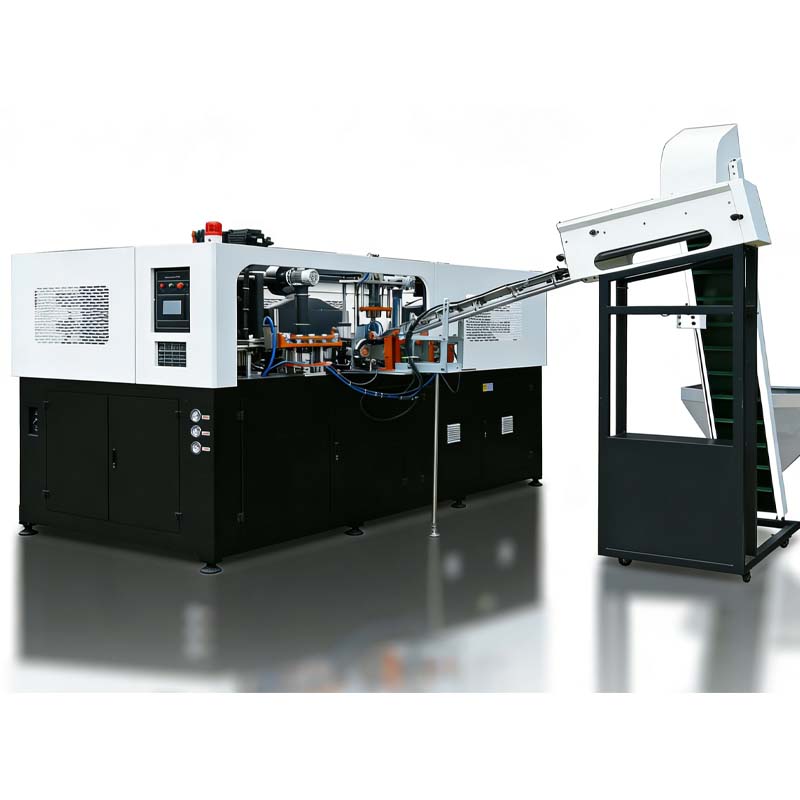

The YC-SF-4000-S is a single-cavity, fully-electric PET stretch blow molding machine focused on cost-effectiveness and reliability. It provides the perfect solution for users with medium-scale output requirements (up to 4000 bottles/hour), especially suitable for small and medium-sized beverage enterprises, startup brands, or as a supplementary production line for large factories. This model inherits the energy-saving and quiet advantages of all-electric drive while offering greater advantages in purchase cost and footprint.

II. Core Technical Advantages

1. Compact & Efficient Entry-Level All-Electric Drive: Enjoy the high precision, low energy consumption, and clean production environment of servo technology with a more economical investment.
2. Robust & Stable Mechanical Structure: Optimized for medium speed, ensuring durability and low maintenance requirements during daily continuous production.
3. User-Friendly Control: Equipped with an intuitive Chinese touchscreen interface for easy parameter setting and operator training.
4. Good Bottle Shape Adaptability: Capable of producing various PET bottles from 200ml to 2L, meeting packaging needs for water, beverages, oils, etc.

III. Process Flow

1. Preforms are automatically loaded, aligned, and fed into the infrared heating oven.
2. The oven rotates and evenly heats the preforms to the preset process temperature.
3. The pick-up gripper transfers the hot preform to the blow mold at the molding station.
4. Inside the mold, the preform is first stretched by the stretch rod, then blown by high-pressure air to expand and conform to the mold cavity.
5. After molding and cooling, the mold opens, and the finished bottle is extracted and conveyed to the next process.

IV. Technical Specifications

• Model: YC-SF-4000-S
• Drive System: All-Servo Electric
• Max. Output: Up to 4000 bottles/hour (based on 500ml water bottle)
• Suitable Preform: Standard PET preforms, single cavity
• Max. Bottle Capacity: ≤ 2.0 L
• Power Consumption: ~40 kW
• Air Pressure: 6-7 bar
• Machine Dimensions: Approx. 5500L x 2500W x 4000H mm

V. Application Fields & Product Examples

• Primary Application: Small and medium-sized bottled water plants, local beverage brands, condiment packaging, daily chemical product packaging.
• Product Examples: 350ml/550ml bottled water, 1L tea drink bottles, 500ml soy sauce bottles, 1L shampoo bottles.
•
