I. Product Overview:

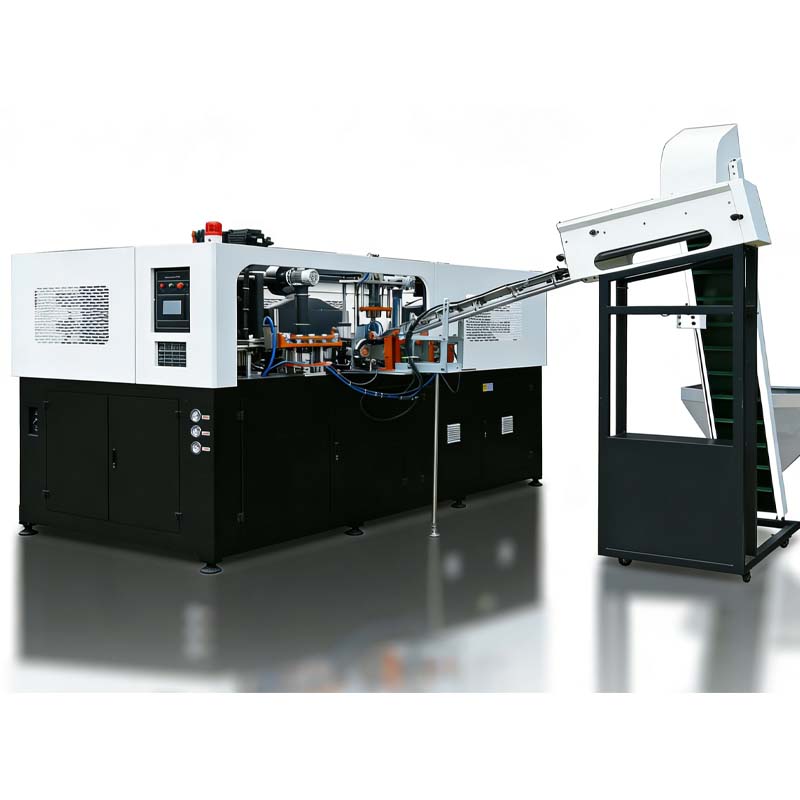

The YC-SF-6000 series is a high-performance, highly flexible, fully-electric PET stretch blow molding machine, available in both single-cavity (YC-SF-6000-S) and dual-cavity (YC-SF-6000-D) configurations. It perfectly balances speed, energy consumption, and product versatility. It can efficiently produce standard water bottles while also adapting to more bottle shapes through quick mold changes, making it a powerful tool for medium-sized beverage plants and contract packagers to meet diverse market demands.

II. Core Technical Advantages

1. Modular Cavity Design: Users can choose single or dual-cavity configuration based on output needs, offering flexible investment and easy future capacity expansion.
2. Efficient & Energy-Saving All-Electric Drive: Utilizes high-performance servo systems for precise and fast movements, reducing overall energy consumption by over 50% compared to similar hydraulic machines.
3. Quick Mold Change System: Standardized interfaces for molds and grippers enable fast bottle shape changeovers, enhancing production flexibility.
4. Stable & Reliable Performance: Optimized mechanical structure and motion control ensure long-term stable operation at 6000 bottles per hour.

III. Process Flow

1. Preforms are fed via elevator into a linearly aligned conveyor track.
2. Preforms are zone-heated in a multi-zone infrared oven with precise temperature control for body and neck sections.
3. Grippers accurately place the hot preforms into the blow molds.
4. Servo-controlled stretch rod and high-pressure blowing act synchronously to complete biaxial stretch blow molding.
5. After mold opening, grippers extract the finished bottles and place them on the output conveyor, with empty molds ready for the next cycle.

IV. Technical Specifications

• Model: YC-SF-6000-S (Single) / YC-SF-6000-D (Dual)
• Drive System: All-Servo Electric
• Max. Output: Up to 6000 bottles/hour (based on 500ml water bottle)
• Suitable Preform: Standard PET preforms
• Max. Bottle Capacity: ≤ 1.5L (Single) / ≤ 1.0L (Dual, per cavity)
• Power Consumption: ~50 kW (S) / ~75 kW (D)
• Machine Dimensions: Approx. 6000L x 2800W x 4200H mm

V. Application Fields & Product Examples

• Primary Application: Medium-sized beverage plants, bottled water factories, contract packaging facilities.
• Product Examples: 500ml-1L water bottles, juice bottles, functional drink bottles, edible oil bottles.
