Complete Product Introduction

1. Product Overview: Integrated Molding Solution

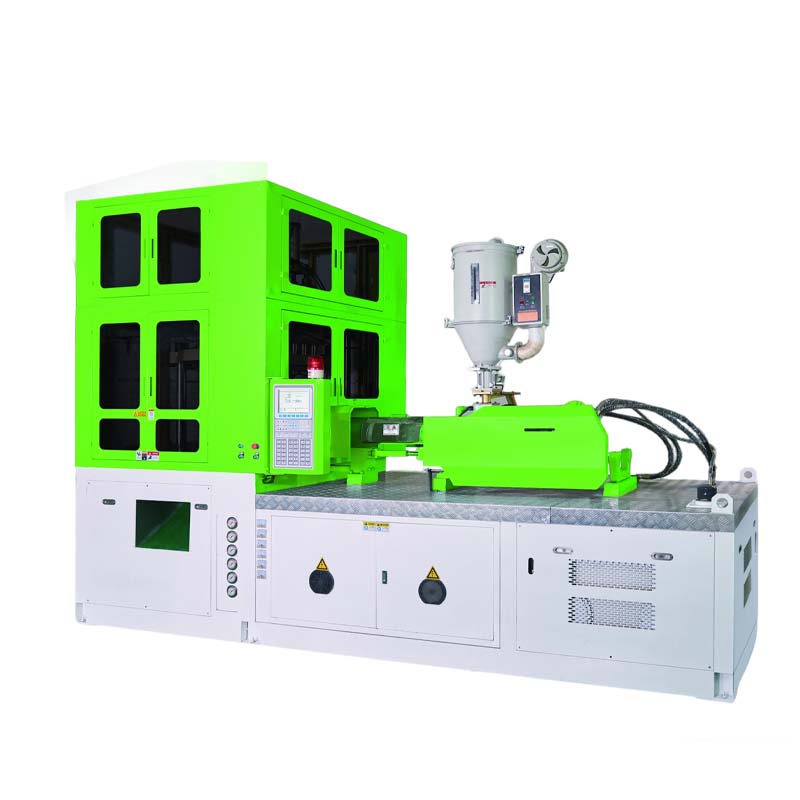

The YC-ISBM series represents state-of-the-art technology in plastic container manufacturing, integrating traditional multi-step processes into a single machine for seamless continuous production from plastic pellets to finished containers. This innovative three-station design not only significantly improves production efficiency but also ensures exceptional container quality consistency through precise temperature control and optimized process parameters.

One-step technology is particularly suitable for high-end applications requiring stringent standards for container clarity, barrier properties, mechanical strength, and dimensional accuracy. The modular design allows flexible adjustment of production parameters according to customer needs, accommodating diverse production requirements from 50ml cosmetic bottles to 5L large packaging containers.

2. Core Technical Advantages

2.1 Three-Station Integrated Design

• High Integration: Injection, stretch blowing, and ejection completed within one machine
• Seamless Transition: Automatic transfer between stations eliminates intermediate quality variations
• Compact Footprint: Saves over 40% production space compared to two-step systems
• Energy Optimized: Heat recovery system reduces overall energy consumption by 25-35%

2.2 Precision Injection Molding System

• High-performance injection unit from Japanese or German brands
• Injection pressure accuracy ±0.5%, ensuring uniform preform wall thickness
• Multi-zone temperature control with independent PID regulation
• Special screw design optimized for material plasticization

2.3 Intelligent Stretch Blow Technology

• Servo motor-driven stretch rod with ±0.1mm speed and position accuracy
• High-pressure blowing system with precise 0-40bar adjustable pressure
• Bidirectional stretch control with independent axial and radial stretch ratios
• Quick mold change system for blow molds (<30 minutes changeover)

2.4 Precise Temperature Control System

• Preform temperature gradient control with ±1°C accuracy
• Infrared online temperature monitoring for real-time parameter adjustment
• Mold constant temperature system ensures molding stability
• Hot runner technology minimizes material waste

2.5 Advanced Control System

• Siemens/Mitsubishi PLC control system with fast response
• 15-inch color touch screen with graphical interface
• Recipe storage for 50 sets of production parameters
• Fault self-diagnosis and early warning system

2.6 Energy Efficient Design

• Servo motor drive saves 40% energy compared to traditional hydraulic systems
• Heat recovery device reduces heating energy consumption
• Closed-loop water cooling system with significant water conservation
• Intelligent standby mode reduces no-load energy consumption

3. Three-Station Process Detailed Explanation

Station 1: Precision Injection Molding Plastic pellets are processed through an automatic drying and dehumidification system before entering the injection unit barrel. Under precise temperature control, the material is uniformly plasticized and then injected into the injection mold cavity at preset pressure and speed.

Technical Features:

• Bottle neck threads formed with precision in single operation, meeting DIN standards
• Optimized preform wall thickness distribution through multi-point control
• Elimination of weld lines ensures preform structural integrity
• Rapid cooling system shortens molding cycle

Quality Control Points:

1. Neck dimension accuracy: Critical diameter tolerance ±0.02mm
2. Thread integrity: No flash, no short shots
3. Wall thickness uniformity: CV value <3%
4. Crystallinity control: Ensures optimal stretch performance

Station 2: Stretch Blow Molding The rotary table precisely rotates 120°, transferring the partially cooled but temperature-optimized preform to the stretch blow station. Here, the preform is reheated to optimal stretching temperature, then axially stretched by the stretch rod while high-pressure air enables radial expansion.

Key Technical Parameters:

• Stretch speed: Adjustable 100-500mm/s
• Blow pressure: Adjustable 15-35bar
• Stretch ratio: Axial 1.5-3.0, Radial 2.0-4.0
• Molding time: 3-15 seconds (depending on container size)

Molding Advantages:

1. Biaxial Orientation Enhancement: Molecular chain orientation significantly improves container mechanical strength
2. Clarity Optimization: Eliminates crystalline haze, transparency up to 90%+
3. Barrier Improvement: Gas barrier properties increased 3-5 times
4. Lightweight Capability: 10-20% weight reduction compared to conventional methods

Station 3: Automatic Ejection & Product Collection The rotary table rotates another 120°, transferring the formed container to the ejection station. The ejection system smoothly pushes containers from the blow mold onto conveyors or robotic handling systems.

Ejection System Features:

• Multi-point multi-stage ejection design prevents container deformation
• Vacuum suction or mechanical gripping ensures transfer stability
• Automatic counting and defect separation
• Optional online inspection and labeling systems

Production Cycle Control:

• Standard cycle time: 8-25 seconds (depending on container size/complexity)
• Time synchronization optimization: Precise matching of three-station actions
• Mold open/close time: ≤2 seconds
• Ejection/reset time: ≤1.5 seconds
