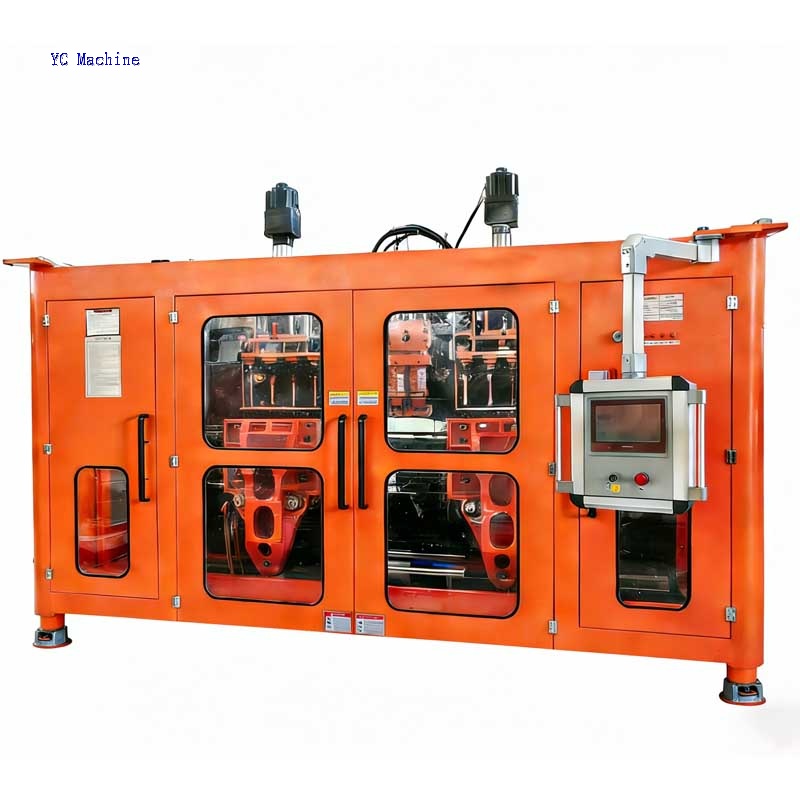

The YC-12000 12L extra-large blow molding machine is specialized equipment developed for heavy-duty, thick-walled industrial container production needs, filling the gap between standard industrial containers and extra-large containers. Featuring ultra-heavy frame design and dual-station alternating operation mode, it achieves economical and efficient production of 10-15L large containers while ensuring molding quality. Ideal choice for large packaging container manufacturing in chemical, agricultural, water treatment, and construction industries.

Professional Technical Configuration

1. Ultra-Heavy Frame: Integral box-type steel structure welding, static deformation <0.08mm/m, dynamic rigidity increased 80%, ensures stable operation of extra-large molds.
2. Dual-Station Design: Two independent blowing stations alternating operation, completely separates cooling and blowing time, maximizes equipment utilization.
3. Heavy-Duty Plasticizing: Φ85mm large-diameter screw with special mixing section design, plasticizing capacity 320kg/h, melt uniformity CV value <3%.
4. High-Pressure Clamping: 100-ton hydraulic direct clamping with proportional servo valve control, clamping force accuracy ±1%, holding stability ±0.5%.
5. Advanced Control: PC-based control platform with 21-inch industrial display, supports 3D mold simulation and production process digital twin.

Detailed Technical Parameters

Heavy-Duty Container Applications

• Chemical Storage & Transport: 12L/15L standard chemical storage tanks, corrosive liquid containers, hazardous material transport tanks
• Agricultural Irrigation: Agricultural water storage tanks, sprinkler system containers, liquid fertilizer storage tanks, pesticide concentrate tanks
• Water Treatment Equipment: Pressure tanks, filter system housings, water softener brine tanks, wastewater treatment containers
• Construction Industry: Large sealant drums, construction paint packaging cans, waterproof material containers, caulk packaging
• Food Industry: Large food ingredient storage tanks, brewing industry containers, food additive storage tanks (special certification)

Special Function Options

• Multi-Layer Coextrusion: Upgradeable to 3-layer coextrusion (A/B/A or A/B/C structure) for barrier/strength/recycled layer composite
• In-Mold Labeling: Integrated IML system for heavy containers requiring exquisite appearance
• Automatic Trimming: Special auto flash trimming system for large containers, processing capacity 15L/min
• Heavy-Duty Robot: 6-axis robot with maximum 150kg payload, completes take-out-trimming-placement entire process
• Clean Room Version: ISO 14644-1 Class 8 clean room configuration for food/pharmaceutical grade container production
