6L Hollow Blow Molding Machine | Industrial Pail & Chemical Container Production Equipment - YC Machinery

Product No.：2026326235829
Online Inquiry

Equipment Positioning

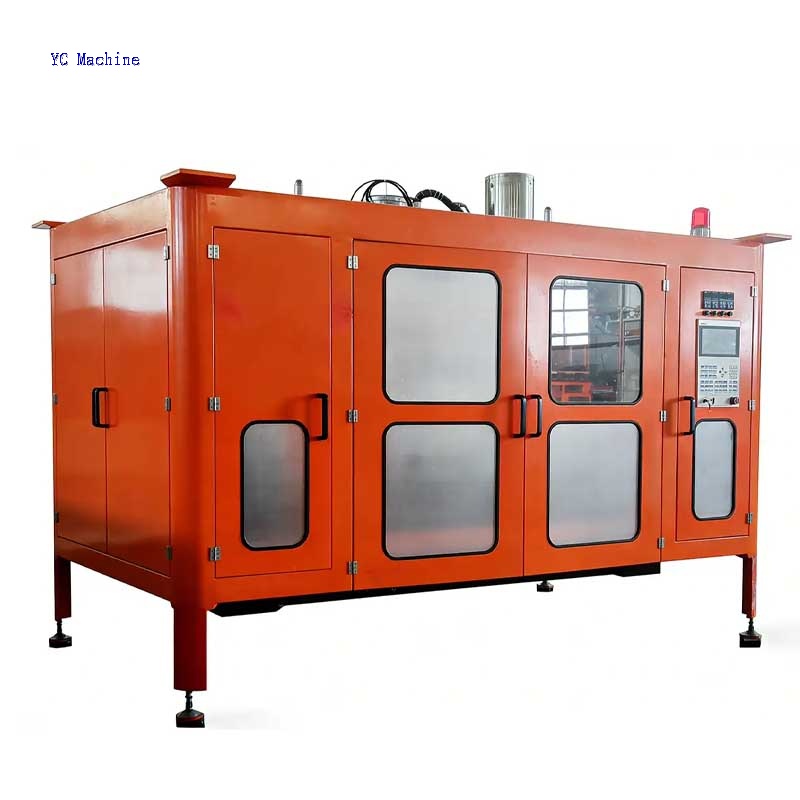

The YC-6000 6L hollow blow molding machine is a key model bridging small/medium containers and large industrial container production, specifically designed for 5-8L industrial packaging needs. Features heavy-duty frame and reinforced clamping mechanism, equipped with large-capacity accumulator and fast extrusion system, efficiently produces industrial-grade packaging containers with uniform wall thickness and reliable strength. Widely used in chemical, lubricant, food additive, construction material, and agricultural sectors.

Engineering Advantages

Heavy-Duty Structure: Integral welded heavy-duty frame increases dynamic rigidity by 50%, ensures stability during high-speed operation with large molds.
Large-Capacity Extrusion: Φ70mm large-diameter screw with 8L accumulator, single shot volume 6-8L, satisfies large container one-shot molding.
Rotary Multi-Station: Three-station rotary table (blowing-cooling-ejection) continuous operation, effectively utilizes cooling time, improves efficiency 30%.
Intelligent Temperature Control: 10-zone precision temperature control (7 barrel zones + 3 die zones), temperature deviation ±1.5°C, ensures large melt volume uniformity.
Automation Integration: Standard robot take-out system, optional automatic flash trimming, online leak testing, palletizing interfaces for downstream automation.

Complete Technical Parameters

Technical Indicator	Parameter Details
Designed Capacity	4-8 liters (standard 6L)
Theoretical Output	400-600 pails/hour (single cavity)
Screw Specification	Φ70mm, chrome-plated hardened, L/D=26:1
Accumulator Capacity	8 liters (maximum shot volume)
Clamping System	Four-column direct pressure, 60-ton clamping force
Mold Plate Size	650×650mm
Mold Opening Stroke	750mm
Rotary Table Diameter	1800mm (three stations at 120° intervals)
Total Power Requirement	65kW (380V/50Hz three-phase)
Hydraulic System	Plunger pump, 21MPa pressure, 90L/min flow
Cooling Water	15m³/h @ 10-20°C (closed loop recommended)
Overall Dimensions	5800×3200×4200mm
Total Weight	8500kg
Control Configuration	Siemens S7-1500 PLC + 12-inch industrial panel
Material Compatibility	HDPE (blow molding grade), HMWHDPE, PP

Target Application Markets

Chemical Packaging: 5L/6L chemical raw material pails, dye drums, resin packaging drums, additive containers
Lubricant Industry: 4L/5L engine oil pails, gear oil drums, hydraulic oil drums, grease packaging
Food Industry: Food additive drums, baking ingredient pails, sauce containers (food-grade certified)
Construction Materials: Caulk drums, sealant packaging, waterproof coating drums, adhesive containers
Agricultural Uses: Liquid fertilizer drums, pesticide concentrate packaging, livestock additive containers

Production Line Configuration

Basic Production Unit: Blowing machine + molds + robot take-out + cooling conveyor
Semi-Automatic Line: Basic unit + manual flash trimming + manual leak testing + manual palletizing
Fully Automatic Line: Basic unit + auto flash trimming + auto leak testing + auto palletizing + stretch wrapping
Clean Room Line: Class 10,000 clean room configuration + special dust-proof design + stainless steel contact parts
